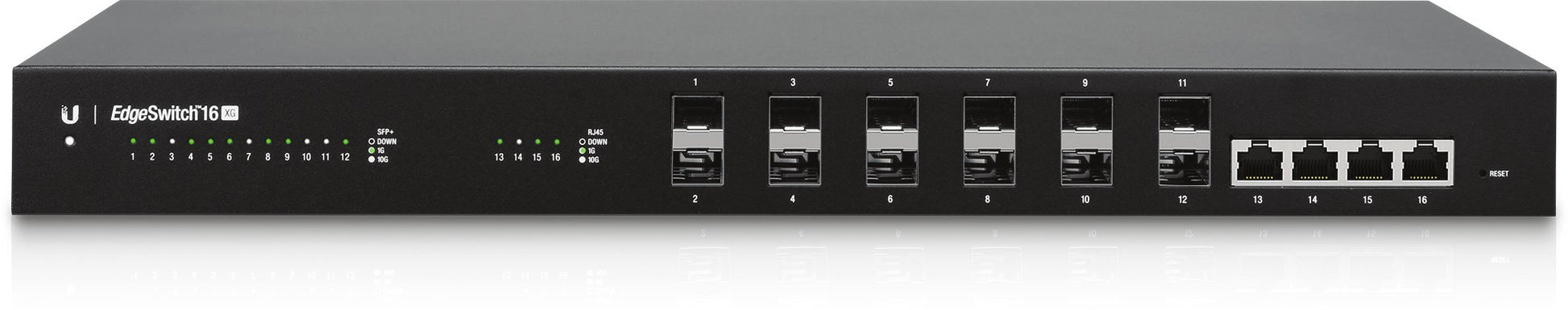

Ubiquiti ES-16-XG Edge Switch
Brand: Ubiquiti Networks
- Ubiquiti EdgeSwitch 16 XG ES-16-XG 16-Port Managed Switch 10G Ethernet SFP+ and RJ45 Ports
- Available with sixteen 10G ports, the high-performance EdgeSwitch enhances network capacity and provides high-bandwidth services to growing networks.
- The EdgeSwitch features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.
- The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‑blocking throughput, the EdgeSwitch supports up to 160 Gbps.
- The EdgeSwitch uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.
Platform: Windows 8.1
Details: The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including: MSTP/RSTP/STP VLAN, Private VLAN, Voice VLAN Link Aggregation DHCP Snooping, IGMP Snooping TACACS+, RADIUS, 802.1X, MAC Filtering, ACL DiffServ, CoS Static Routing, Policy-Based Routing DHCP Server Functionality EdgeSwitch 16 XG Model: ES-16-XG (12) SFP+ Ports (4) 10G RJ45 Ports (1) RJ45 Serial Console Port Non-Blocking Throughput: 160 Gbps Switching Capacity: 320 Gbps Forwarding Rate: 238.10 Mpps Rack Mountable with Rack-Mount Brackets (Included) DC Input Option (Redundant or Stand-Alone)
Package Dimensions: 21.5 x 10.6 x 3.0 inches
