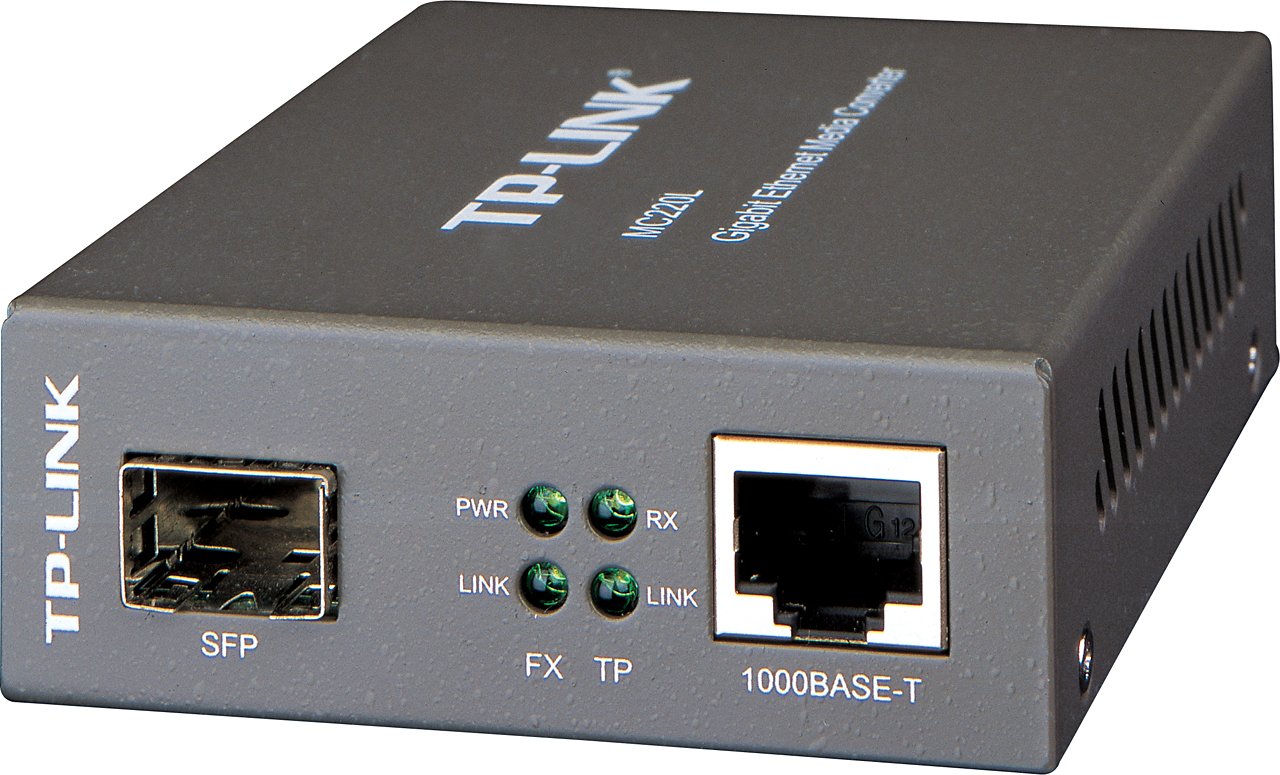

TP-Link Gigabit Ethernet Media Converter, Up to 1000Mbps RJ45 to 1000Mbps SFP Slot Supporting MiniGBIC Modules (MC220L)

TP-Link Gigabit Ethernet Media Converter, Up to 1000Mbps RJ45 to 1000Mbps SFP Slot Supporting MiniGBIC Modules (MC220L)

  • $36.54
    Unit price per
  • Save $17.60


Brand: TP-Link

Features:

  • Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
  • Supports auto MDI/MDIX for TX port
  • Provides switch configuration of Force /Auto transfer mode for FX port
  • FX port support hot-swappable
  • Extends fiber distance up to 0.55km(0.342 miles) for multi-mode fiber and 10km (6.2 miles) for single-mode fiber
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply

Publisher: TP-Link

Details: The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19"system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers(0.342 miles) and 10 kilometers (6.2 miles) when utilizing single-mode fiber. Protocols Supported: IEEE 802.3ab IEEE 802.3z IEEE 802.3x

UPC: 799599496430

EAN: 601577728429

Package Dimensions: 8.5 x 6.5 x 2.5 inches

MPN: MC220L

SKU: AS-88190
