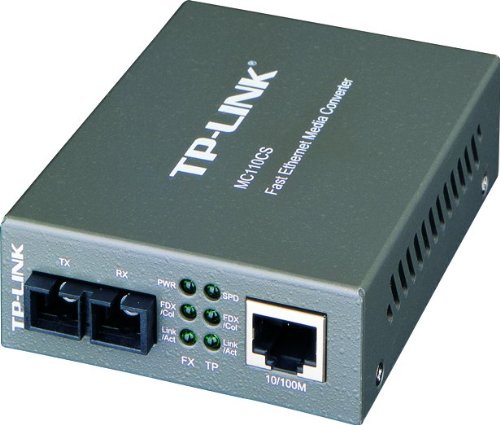

TP-Link Fast Ethernet Media Converter, Up to 100Mbps RJ45 to 100M Single-Mode SC Fiber (MC110CS)

TP-Link Fast Ethernet Media Converter, Up to 100Mbps RJ45 to 100M Single-Mode SC Fiber (MC110CS)

Brand: TP-Link

Features:

  • Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Easy-to-view LED indicators provide status to monitor network activity easily External power supply
  • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Ports: 1x 100M SC port; 1x 100M RJ45 port (Auto MDI/MDIX)
  • Basic Function: Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x)
  • Half Duplex Flow Control (Backpressure) Extends fiber distance up to 20km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
  • Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
  • Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Publisher: TP-Link IP Cams

Details: The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19" system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, supports both 5VDC and 9VDC external power supply and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers(12.4 miles). Protocols Supported: IEEE 802.3 IEEE 802.3u IEEE 802.3x

UPC: 807030489559

EAN: 731215282034

Package Dimensions: 8.0 x 6.5 x 2.6 inches

MPN: MC110CS

SKU: SYN-4888150

PriceValidUntil:Stock Last
