SIIG JJ-E10D11-S3 2-Port RS232 Cyberserial Dual Pcie Bracket

  • $72.51
    Unit price per


Brand: SIIG

Features:

  • PCI Express 1-lane (x1) adapter works with PCI Express slots with different lane width
  • Installs in any available PCI Express slot
  • Built-in FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment
  • Two high-speed 16950 UART serial ports (9-pin) support baud rates up to 15 Mbps
  • Onboard power connector to provide reliable power source for devices that require power from the serial port

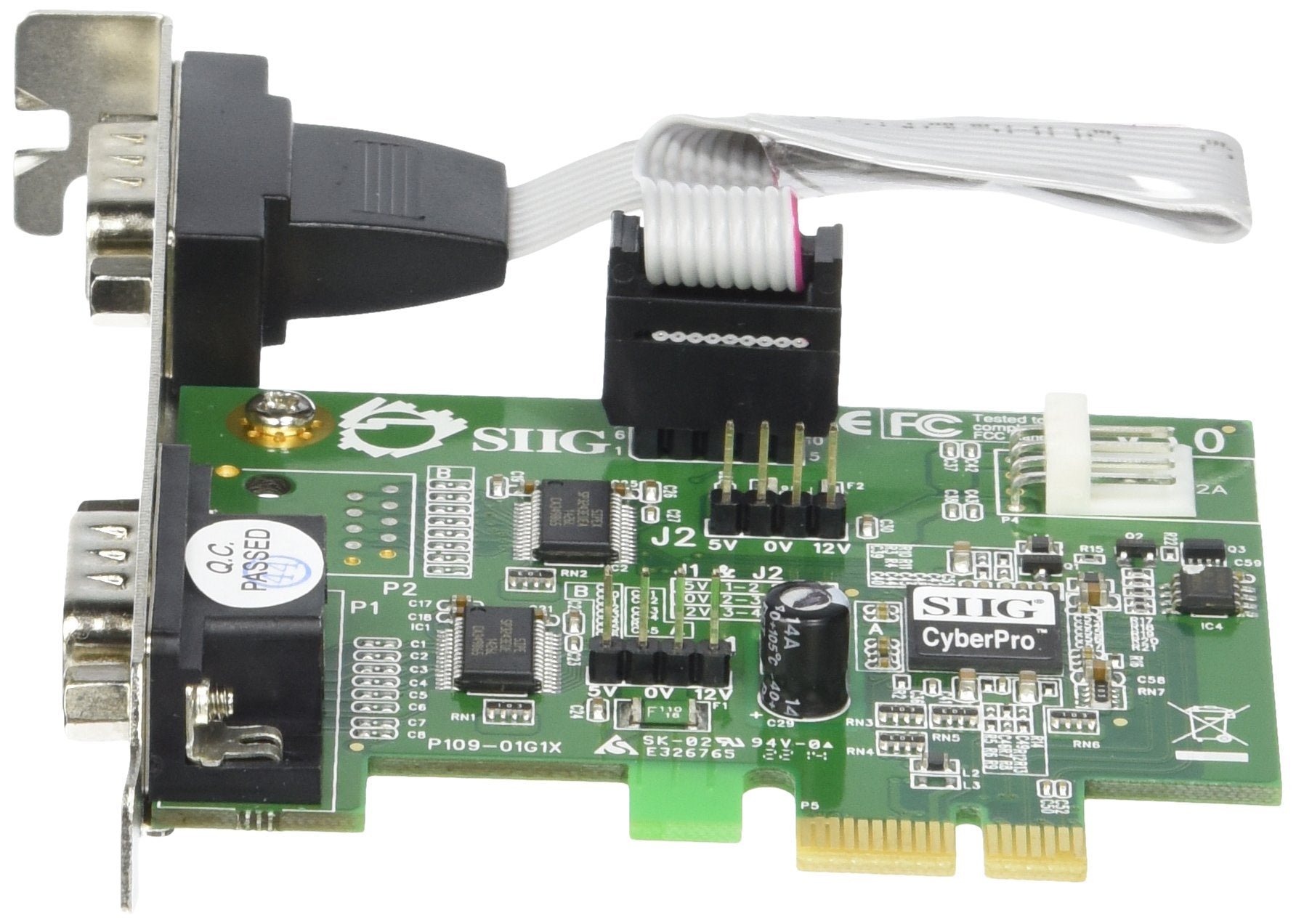

  • Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.).  Configurable via jumpers with silk-screened settings on PCB
  • Form Factor: Plug-in Card

Platform: Windows

Publisher: SIIG

Details:

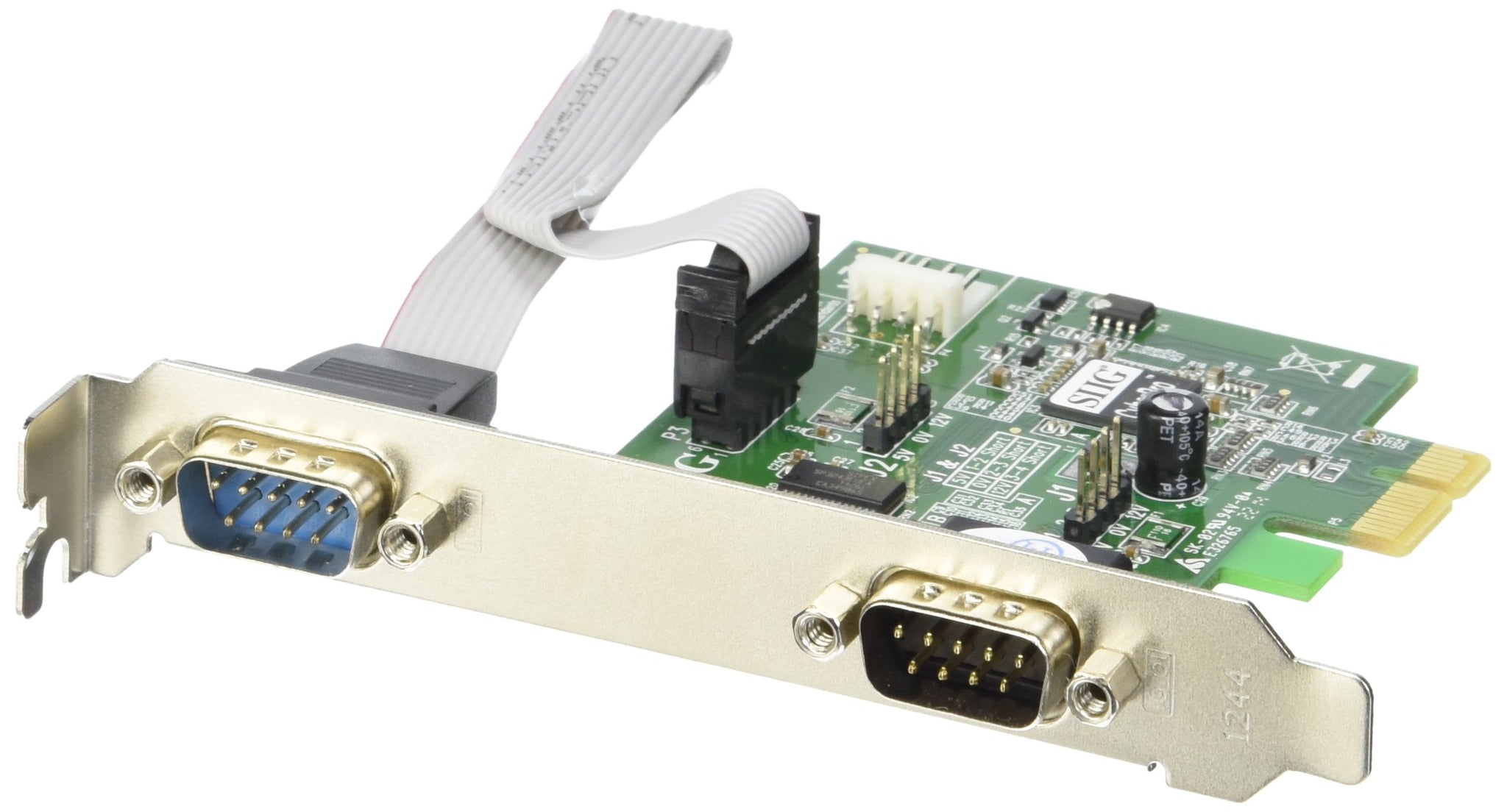

SIIG's CyberSerial Dual PCIe is designed to add two 9-pin serial ports to PCI Express-enabled desktop computers. This PCIe serial adapter comes with two high-speed 16950 UART serial ports to support baud rates up to 15 /s, and its built-in 128-byte buffers dramatically increase data transfer rates especially under Windows' multi-tasking environment. The serial port can work as either a standard RS-232 port, or can be configured with 5V/12V power output for devices that require power such as handheld scanners, table scanners, POS displays, etc. The CyberSerial Dual PCIe features a 4-layer PCB (with separate layers for data and ground) to greatly reduce signal noise and loss. Additionally, this dual profile serial adapter works with PCI Express slot with different lane widths. With the included enhanced bend-resistant, low profile brackets, the CyberSerial Dual PCIe can be installed in either standard height or low profile systems providing secure connection to the system.

UPC: 777780519243

EAN: 872005743578

Package Dimensions: 9.7 x 6.6 x 2.5 inches

MPN: JJ-E10D11-S3

SKU: AS-85465
