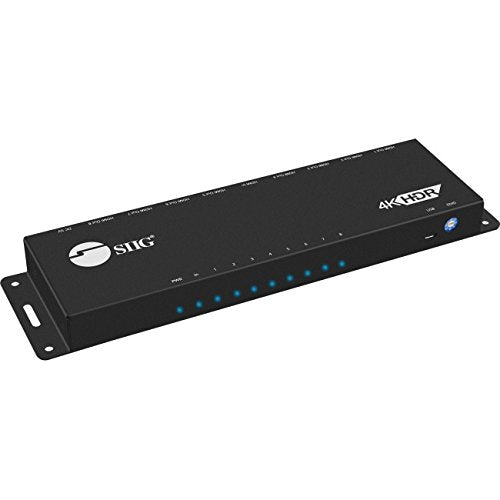

SIIG 4K 2 & 4 Port HDMI Splitter with EDID Management | 4:4:4, 4K @60Hz, HDCP 2.2, 18Gbps | Auto Scaling, Low Heat

  • $2,999.00
    Unit price per

Brand: SIIG


  • Hdmi distributer: distributes HDMI video and Audio from a single source to up to 8 HDMI displays simultaneously while maintaining signal quality. Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth.
  • Supports up to 4K @60Hz (YUV 4: 4: 4 8-bit), HDR 4K @60Hz (YUV 4: 2: 0 10bit), 3D, xvycc, x.V.Color & deep Color. Supports Dolby digital, DTS-HD, and Dolby TrueHD Audio. Works with Apple TV, Roku, Amazon fire TV, PS4, Blu-ray, NVidia SHIELD.
  • Auto video scaling feature: detects and configures the video resolution automatically according to the capabilities of each connected monitor. Supports simultaneous 4K and 1080p output. See notes below for limitations.
  • Cascadable: easy to cascade multiple splitters for more displays, and Supports up to 10 layers. Edid and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays.
  • Low heat generation and ESD protection to guarantee stability and reliable performance. Sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Made in Taiwan with 3 years warranty backed by us based experienced tech Support team. Please contact us directly if you have any questions or concerns.

Publisher: SIIG



-HDMI 2.0 & HDCP 2.2 compliant
-Supports xvYCC, x.v.Color & Deep Color
-Supports resolution down scaling from 4K to 1080p. *See Notes below for limitations
-Video bandwidth: 18Gbps (single-link 600MHz)
-Display Moder: Mirror
- ESD protection: ±15kV Air / ±8kV Contact
-LED indication for power and signal
-Supports cascading of multiple splitters for adding more displays, supports up to 10 layers

Game Capture in 1080p while Playing in 4K!
Use Elgato or other game capture device to record game play footage in 1080p, while acually playing in 4K!

Maximum Resolution:
-3840x2160@60Hz (YUV 4:4:4)
-HDR 3840x2160@60Hz (YUV 4:2:0)

Important Notes:
Below are limitations associated with 4K content down scaling:
-Down scaling to 720p and 480p is not supported
-YUV 4:2:2 down scaling is not supported
-Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
-4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
-The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally

3 Years manufacturer warranty. If a replacement or damaged part(s) is needed, please contact us at support@e-tekdepot.com.

System Requirements:

-HDMI source device such as computers, game consoles, Blu-ray/DVDplayers, and media players
-HDMI displays, monitors, and HD TVs

Package Contents:
-1x8 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
-Power Adapter
-Screw Kit
-User Reference Guide

Made in Taiwan

MPN: CE-H23D11-S1
