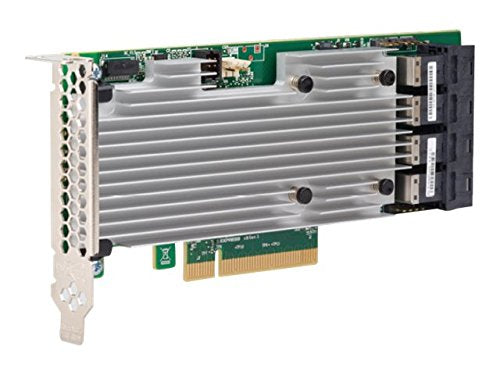

LSI Logic Controller Card 05-25708-00 9361-16i 16Port MegaRAID PCIe 3.0 12Gb/s SAS Retail

LSI Logic Controller Card 05-25708-00 9361-16i 16Port MegaRAID PCIe 3.0 12Gb/s SAS Retail

  • $1,134.95
    Unit price per
  • Save $24.25


Brand: LSI

Features:

  • UPC: 830343003570
  • Weight: 1.000 lbs

Platform: Windows 10

Publisher: LSI

Details: Specifications Mfr Part Number: 05-25708-00 /9361-16I Features: Connect up to 16Ã' SATA or SAS drives via direct connection inside the box or up to 240 drives leveraging SAS expander technology Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors Support critical, high-bandwidth applications with PCIe 3.0 connectivity Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60 Add more protection and peace of mind with optional CacheVaultÃ' flash cache protection Connectors: 4x Mini-SAS HD SFF8643 Internal Connectors RAID-on-Chip Controller: SAS3316 dual core RAID on Chip (ROC) RAID Management Software: MegaRAID Storage Manager,StorCLI (command-line interface),CTRL-R (BIOS configuration utility),HII (UEFI Human Interface Infrastructure) Cache Protection: Optional CacheVault Module (CVPM02) Host Bus Type: PCI-Express 3.0 x8 Cache Memory: 2GB 1866MHz DDR3 SDRAM Internal Ports: 16 Operating Voltage: +12V, 3.3V Data Transfer Rates: Up to 12Gb/s per port Device Support: Up to 240 SATA and/or SAS devices MTBF: 2,500,000 hours OS Support: Microsoft Windows Vista/2008/Server 2003/2000/XP, Linux, Solaris (x86), Netware, FreeBSD, VMware and more Dimensions: 6.127 x 2.712 inch (Low profile) Package Contents: MegaRAID SAS 9361-16i, QIG, LP bracket

UPC: 830343003570

EAN: 830343003570

Package Dimensions: 10.4 x 8.3 x 2.7 inches

MPN: 05-25708-00

SKU: AS-190191
