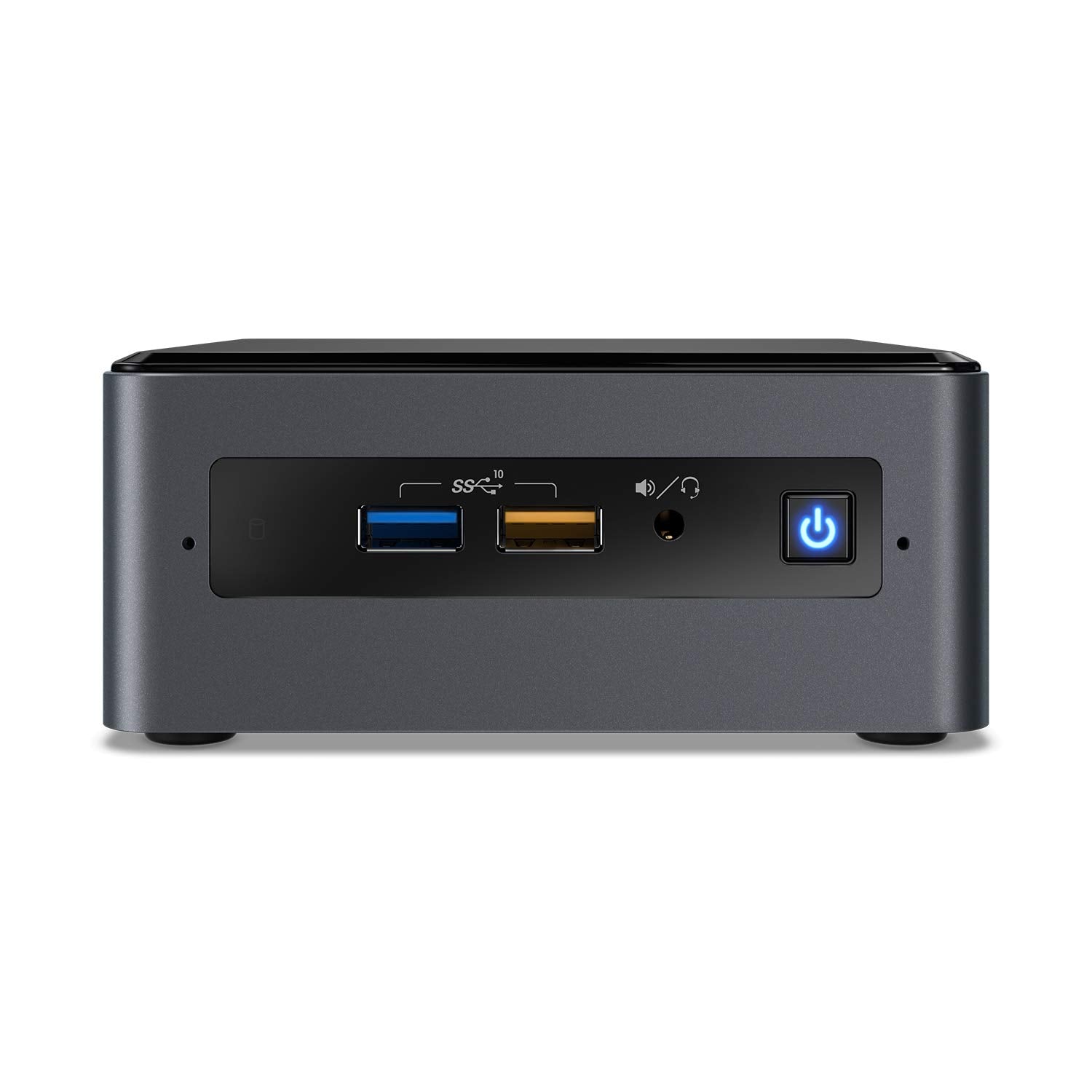

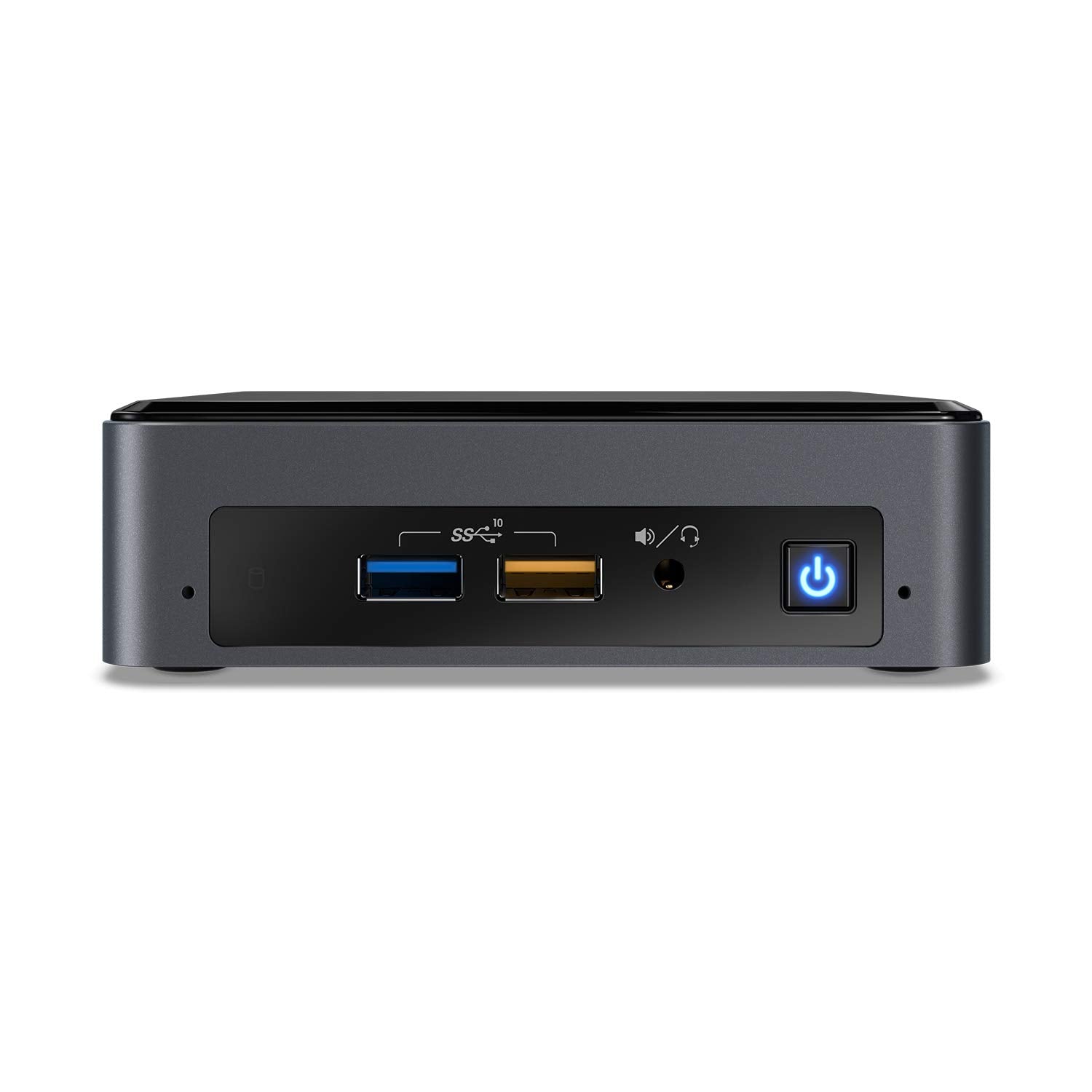

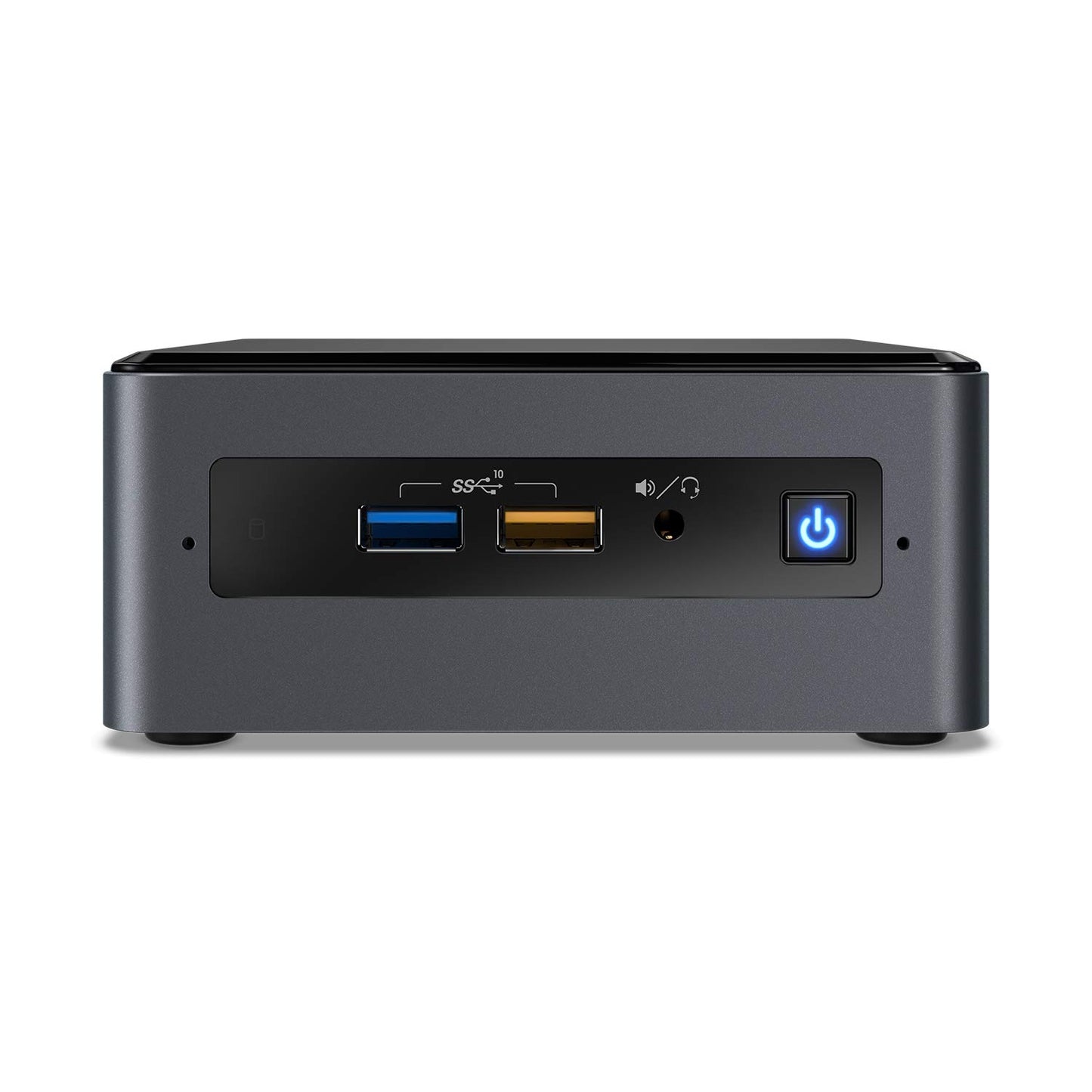

Intel BOXNUC8i7BEH1 Bean Canyon NUC Components Other

  • $2,999.00
    Unit price per

Brand: Intel


  • 8th Generation Intel Core i7 8559U Processor
  • Intel Iris Plus Graphics 655
  • M.2 22x42/ 80 slot for PCIe NVMe or SATA SSD
  • 2.5 inches Ssd/HDD bay
  • Dual Channel DDR4 2400 SODIMM support, 32GB max

Publisher: Intel

Details: Intel NUC Kit BOXNUC8i7BEH1 i7-8559U single Pack retailessentialsc
product collection: Intel NUC Kit with 8th generation Intel Core processors
code name: products Formerly bean CANYON
board form factor: ucff (4 x 4) number of internal drives supported: 2
lithography: 14 nm
tdp: 28 W processor included: Intel Core i7-8559U processor (8M Cache, up to 4.50 supplemental informationc
embedded options available no
description other features: includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C also includes Microsoft card slot, dual micro phones memory and storagec
max memory Size (dependent on memory Type): 32 GB max number of memory channels: 2
max memory bandwidth: 38.4 Gb/ s
max number of DIMMs: 2
ecc memory Supported: No processor graphicsc
integrated graphics: Yes pci Express revision: Gen3
pci Express configurations: M.2 slot with PCIe x4 lanes m.2 card slot (Storage): 22x42/ 80i/ O specificationsc
number of USB ports: 6 max number of SATA 6.0 Gb/ s ports: 2
raid configuration: 2.5 HDD/ SSD + M.2 SATA/ PCIe SSD (raid-0 raid-1)
Audio (back channel + front channel): 7.1 digital (HDMI mDP) L+R Mic (F)
integrated LAN: 10/ 100/ 1000


SKU: AS-220262
