Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender

Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender

  • $9,999.00
    Unit price per


Brand: Gefen Inc.

Features:

  • Upc: 888814999532
  • Weight: 2. 350 lbs

Format: CD-ROM

Publisher: Gefen LLC

Release Date: 05-09-2019

Details:

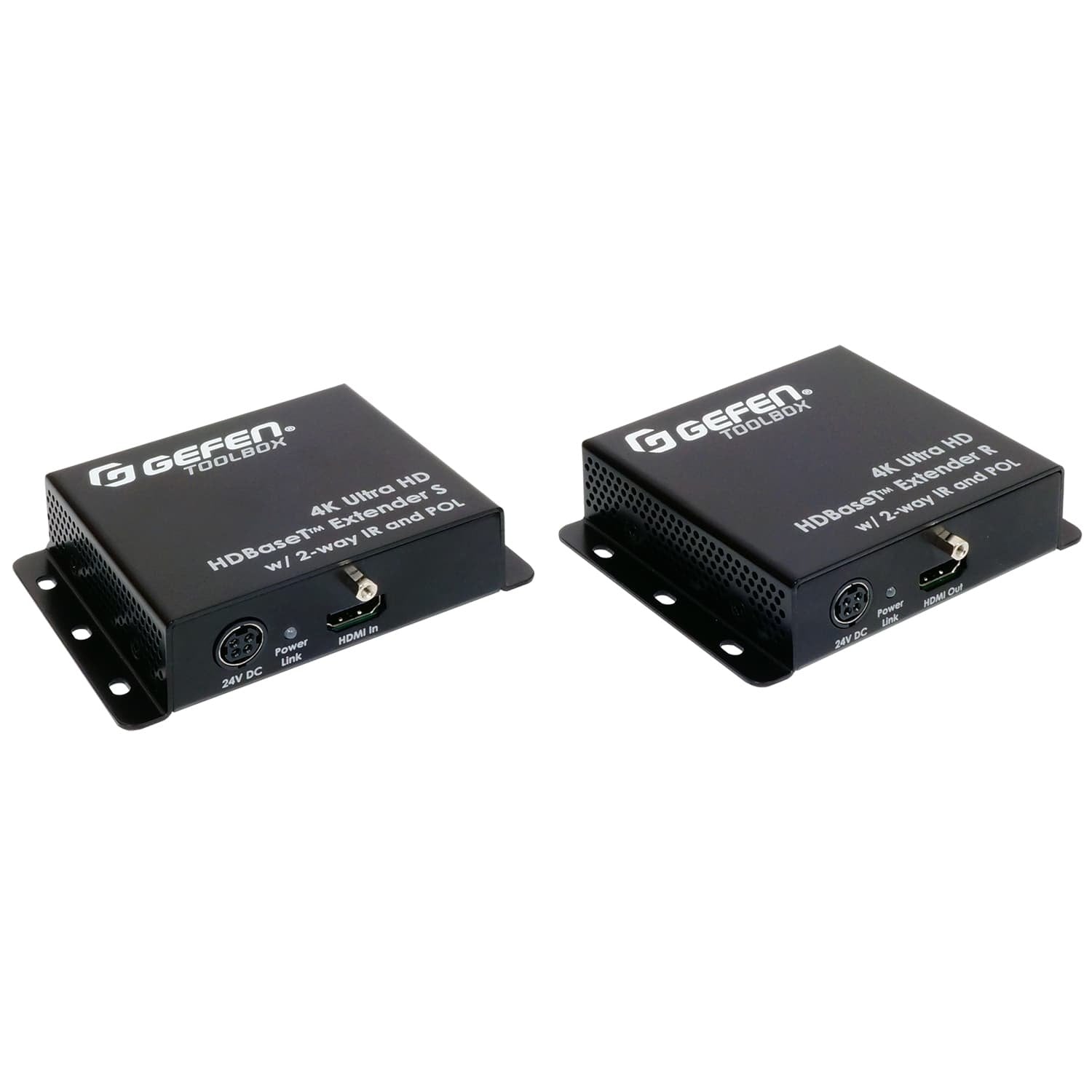

4K Ultra HD HDBaseT Extender

The GTB-UHD-HBTL 4K Ultra HD Extender uses Gefen's implementation of the HDBaseT technology to extend HDMI up to 230 feet/70 meters at 1080p and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) with 7.1 channels of HBR (High Bit Rate) lossless digital audio are supported. This product provides 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.

Specifications
  • Connectivity Technology: Wired
  • Number of Input Devices Supported: 1
  • Number of Output Devices Supported: 1
  • Maximum Operating Distance: 131.23 ft
  • Network (RJ-45): Yes
  • HDMI In: Yes
  • HDMI Out: Yes
  • Number of Network (RJ-45) Ports: 2
  • Number of HDMI Inputs: 1
  • Number of HDMI Outputs: 1
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 6a
  • Graphics Modes: 4K
  • Maximum Video Resolution: 4096 x 2160
  • Height: 1"
  • Width: 4.3"
  • Depth: 3.2"
  • Form Factor: Surface-mountable
  • Product Family: GefenToolB

    UPC: 888814999532

    EAN: 888814999532

    Package Dimensions: 12.2 x 6.3 x 4.1 inches

MPN: GTB-UHD-HBTL

SKU: DH-GTBUHDHBTL
