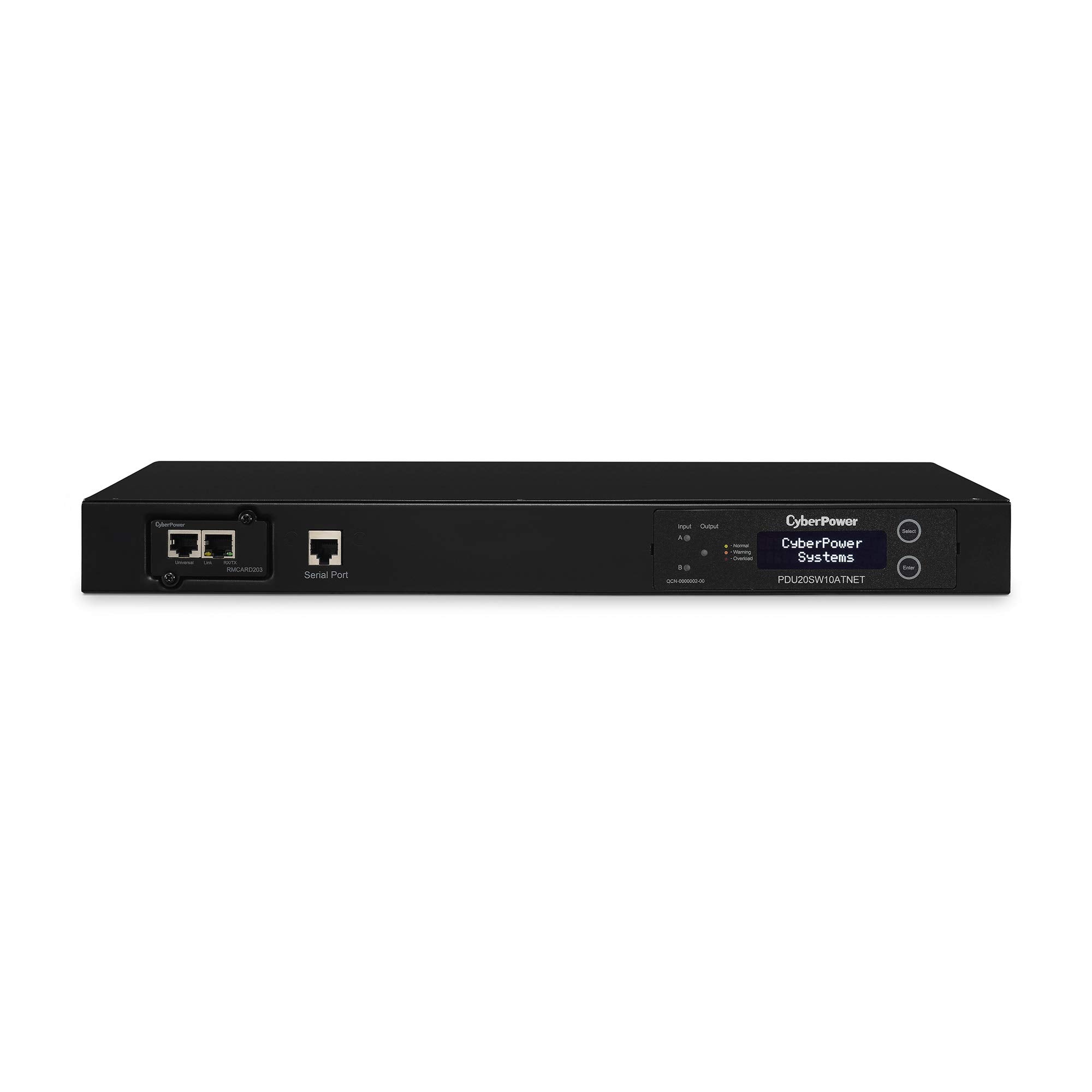

CyberPower PDU20SW10ATNET Switched ATS PDU, 100-120V/20A, 10 Outlets, 1U Rackmount

  • $2,999.00
    Unit price per

Brand: CyberPower

Color: Black


  • 120V 20A Switched ATS PDU with 10 NEMA 5-20R outlets and dual NEMA 5-20P 20A 120V input connections
  • Switched Automatic Transfer Switching (ATS) PDU to provide a redundant input power option
  • Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
  • SNMP/HTTP Network Interface for real-time outlet control, monitoring and event logging of the Switched ATS PDU
  • 1U Rugged, industrial-grade metal housing. 3 Year Warranty

Publisher: Cyber Power

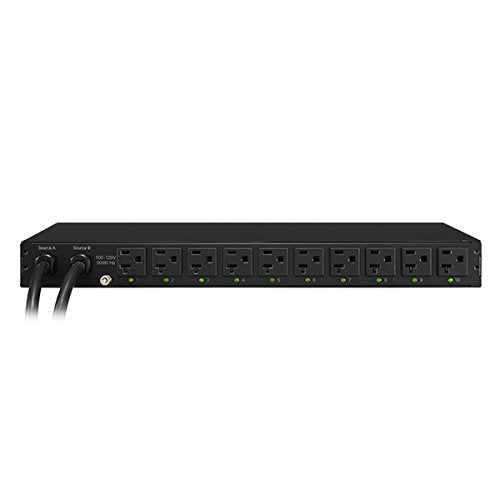

Details: The Cyber Power PDU20SW10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) power distribution unit (PDU), provides 100-120V / 20A output. The PDU distributes unfiltered electrical pass-through to 10 NEMA 5-20R receptacles from redundant NEMA 5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU20SW10ATNET includes a SNMP/HTTP card (RMCARD203). With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU. The switched outlet receptacles can be managed individually or collectively over the network the Cyber Power Management Console /web browser and the RJ45 Ethernet port for network connection or, locally, using the LCD controls. Using the Cyber Power Management Console, outlets can be turned on, turned off, or recycled on demand or at programmed times, to address multiple needs, including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. Additionally, the Cyber Power Management Console provides real-time remote monitoring of PDU vitals and event logging to review historical power conditions, such as input voltages, load levels, and outlet status. Automatic event notifications can be sent to designated users when power events occur, via Email, SMS Text, or SNMP Trap. Designed for datacenters and other demanding electrical applications, the PDU20SW10ATNET has a rugged metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL60950_1 and CSA C22.2 certified by ETL and FCC Class A certified. Industry leading three-year warranty.

UPC: 649532610785

EAN: 649532610785

Package Dimensions: 21.6 x 16.5 x 4.9 inches


SKU: ING-66495X

PriceValidUntil:Stock Last
