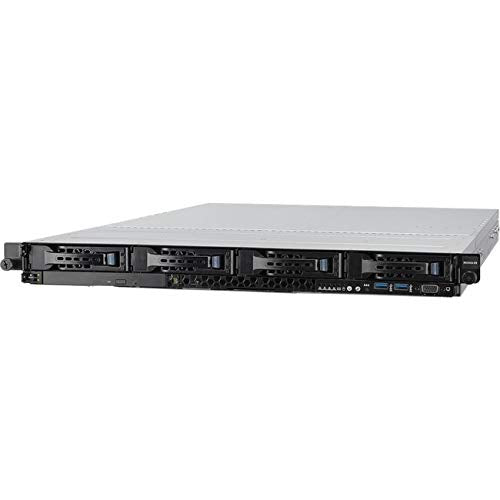

Asus - RS500A-E9-RS4-U - Asus RS500A-E9-RS4-U Barebone System - 1U Rack-mountable - AMD - Socket SP3-1 x Processor Support - 2 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - Serial ATA/600,
- Number of Processors Supported: 1
- Processor Socket: Socket SP3
- Processor Supported: EPYC
- Chipset Manufacturer: AMD
- Maximum Memory: 2 TB
Details: Top performance in industry-standard SPEC benchmarks C
RS500A-E9-RS4-U is built on AMD EPYC platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, RS500A-E9-RS4-U packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I / O controller on the processor
Flexible expansion for better storage and networking C
RS500A-E9-RS4-U features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server.
RS500A-E9-RS4-U fits four 3.5-inch hot-swappable bays with choice of 32Gbps NVMe SSDs, 12Gbps SAS or 6Gbps SATA drives. One M.2 slot accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth - 5.3X faster than 6 Gb / s SATA III - for faster boot speeds.
Exclusive Thermal Radar technology for energy efficiencyC
RS500A-E9-RS4-U features ASUS-exclusive Thermal Radar technology with ambient sensors placed in CPU, memory, NVMe, SSD, OCP mezzanine connector for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership - ideal for data centers with extreme workloads.
Redundant Platinum PSU supportC
RS500A-E9-RS4-U supports redundant 770W 80 Plus Platinum power supply, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.
Processor / System Bus C
1 x Socket SP3
AMD EPYC 7000 SeriesGenerationC
System on Chip (SoC)MemoryC
Total Slots : 16 (8-channel)
Capacity : ...
Package Dimensions: 24.0 x 18.0 x 2.0 inches
