• $98.99
    Unit price per



  • PoE+/PSE (power + data), 10/100/1000 Mbps compliant port
  • Redundant power inputs via 24/48 V DC terminal block with alarm relay
  • Accepts wide-range 20-57 V DC power input
  • DC to DC 24 V step-up converter
  • Fully compliant with IEEE 802.3at/802.3af
  • Maintain device operation during power disruptions with redundant power inputs
  • Versatile installation options with included DIN rail and wall-mount brackets
  • Operate under harsh industrial conditions with an IP-30 rated, rugged housing

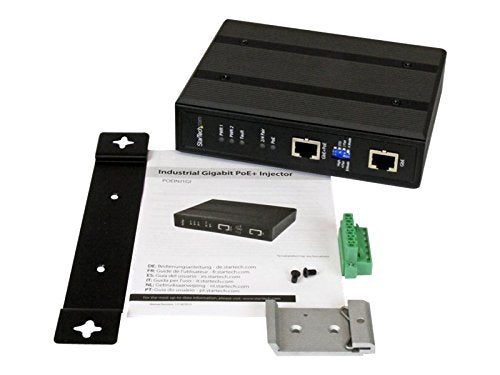

Details: Supply 30W power and data connectivity to a Gigabit PoE device over standard Ethernet cabling - Wall and DIN Rail Mountable - The POEINJ1GI Industrial Gigabit PoE+ Injector provides power and data connectivity to a Gigabit PoE-compliant device over standard Ethernet cabling at distances of up to 330ft (100m), and offers redundant, wide-range DC power inputs. This injector allows you to easily connect a PoE-powered device (PD) to a non-PoE LAN switch, avoiding the cost of upgrading your switch to a PoE-enabled model. Providing seamless power failover in the event of power dips or failures, the injector features redundant 20-57V DC (nominal 24/48V DC) terminal block power inputs. The internal DC-DC converter provides the PoE injector with high voltage output from a low voltage input (<24V DC). When used with multiple power sources, the injector also supports alarm relay contacts, which can be wired to your existing alarm circuit to give you instant notice when a power disruption occurs. Fully compliant with IEEE 802.3at / 802.3af, the injector provides a 10/100/1000Mbps port with support for up to 30 Watt max output, and up to 60 Watts output for non-standard PoE devices. To ensure dependable performance in harsh environments this power over Ethernet injector features a rugged, IP-30 case design with flexible DIN rail or wall-mountable installation options. Backed by a 2-year warranty and free lifetime technical support.


SKU: AS-148503

PriceValidUntil:Stock Last
