Cisco Aironet 2.4GHz/5GHz Access Point AIR-ANT2524DW-R
- 2.4-Ghz / 5.0-Ghz
- Part Number: AIR-ANT2524DW-R=

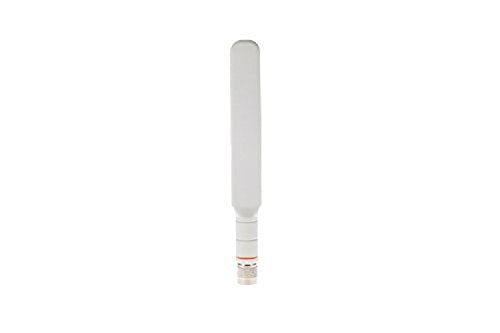

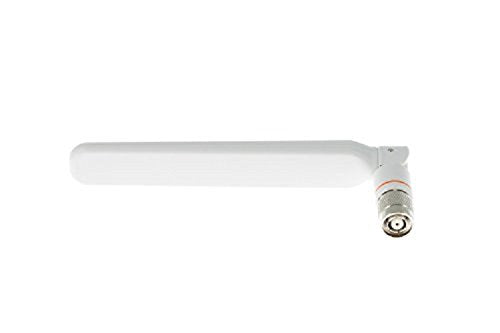

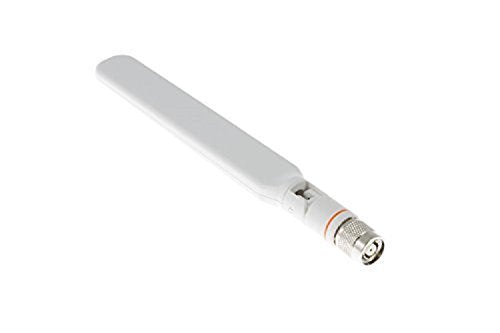

- The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.
Platform: Not Machine Specific
Publisher: CISCO SYSTEMS - ENTERPRISE

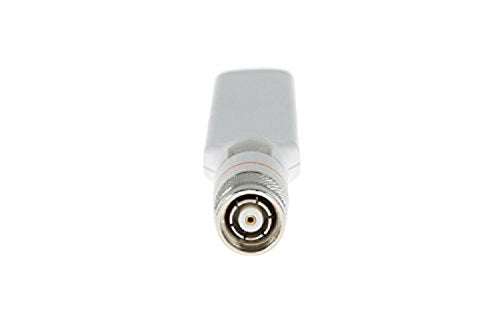

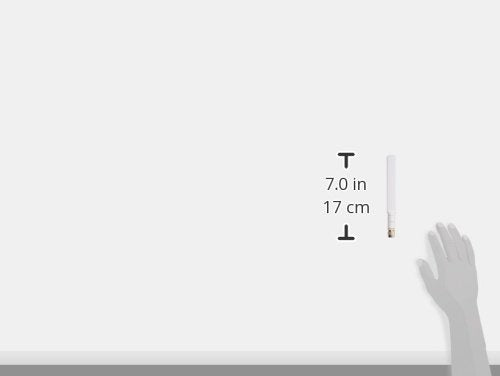

Details: The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and 4 dBi in the 5-GHz frequency band. Operating frequency range 2400 to 2500 MHz 5150 to 5850 MHz Nominal input impedance 50 Ohms VSWR Less than 2:1 Peak Gain @ 2.4. GHz 2 dBi Peak Gain @ 5 GHz 4 dBi Elevation plane 3dB beamwidth @2.4 GHz 63 degrees Elevation plane 3dB beamwidth @ 5 GHz 39 degrees Connector type RP-TNC plug Antenna length 6.63 in. (168.5 mm) Antenna width 0.83 in (21 mm) Radome length 4.88 in. (124 mm) Weight 1.3 oz Operating temperature -20°C to 60°C (-4° to 140°F) Storage temperature -40°C to 85°C (-40°F to 185°F) Environment Indoor, office System Requirements: This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and the 5 GHz band and that have dual-band antenna ports, labeled as such in orange text. Installation Instructions: Step 1 Verify that the connector to which you are connecting the antenna is a dual-band antenna port, identified by orange text on the access point. Step 2 Align the antenna connector with the RP-TNC connector on the access point. Step 3 Engage the antenna connector threads with the RP-TNC connector on the access point. Step 4 Tighten the antenna by hand. Do not use a wrench or any other tool to tighten the antenna. Step 5 Adjust the antenna's articulating joint to the desired position.
Package Dimensions: 8.0 x 2.5 x 0.5 inches
